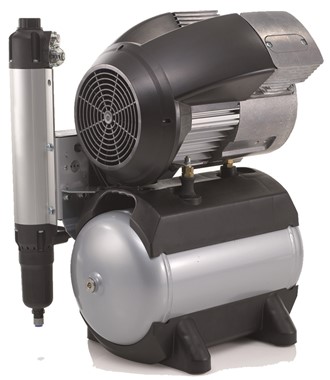

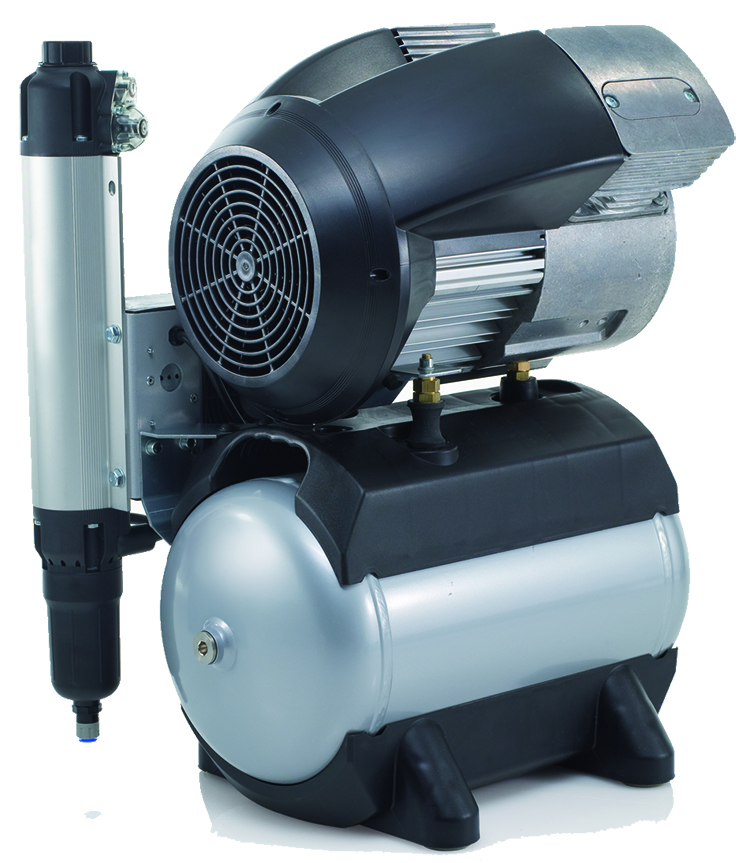

DÜRR Tornado 2 kompressor

DÜRR Tornado 2 kompressor
Varenr.
5282-01
Pris
Kr 49 674 Inkl. MVA

Kvantumsrabatt

Loading...

Tekniske data
Model                                  Tornado 1             Tornado 2             Tornado 4

Spenning                                    230                            230                            230
Frekvens (Hz)                            50/60                         50/60                         50/60
Sylinder                                      1                                2                                4
Gjennomstrømming i bar(l/min)   67                             125                            220
Kapasitet (l)                                20                             20                              50
Trykkområde (bar)                     6-7,8                         6-7,8                          6-7,8
Støynivå [dB(A)]                        64                             68                               70
Støynivå med kabinett [dB(A)]   54                             56


Dimensjoner (H x W x D cm)     66x48x37                  64x48x37                   72x76x53

 med støykabinett                       84x63x60                  84x63x60


Vekt (kg)                                    32                              38                               85
vekt med støykabinett (kg)         49                              57
